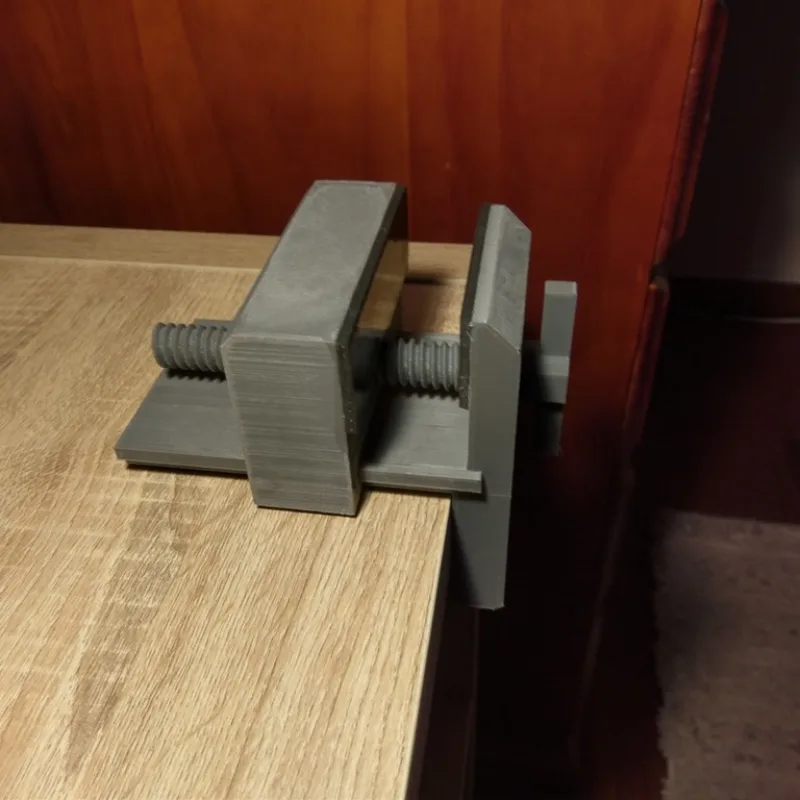

Desk or bench Vice

149 Download
124 Likes
1 Makes
Vai al Modello
The source for this vice (I'm in Australia, and we call them vice and not vise) was a good starting point. There were several things about it, tat just didn't make any sense to me, so I re-modelled it into something that made better sense.
- I had to widen the mounting gap, as the bench I wanted to clamp it to was too wide for the current gap.
- I removed the angle from the mounting section, as it was a bad design and crated a weak point in the vice. There would have been unnecessary stress due to its length. I made it square, so it fits to the bench better and removes the stress point.
- For some reason (that I cannot fathom) the thread for the mounting clamp was supplied separately, creating something extra to print, and then you had to glue it in to place. I embedded the nut into the base stl file, so that it prints with the base of the vice. One less piece to print, and no gluing necessary.
- I altered the design of the main screw, to be more like a traditional vice, plus this
Fonte
Thingiverse
Cosa serve per stampare: Intermedio Bassa affidabilità
Perché?
post-lavorazione significativa
Pezzo unico Viteria richiesta
Supporti 1/3
Assemblaggio 0/3
Impostazioni 1/3
Dimensioni piano 0/3
Post-lavorazione 2/3
Stampante
FDM / FFF
Formato file
STL
Materiale
PLA
Post-elaborazione
Incollaggio, Viteria
Software
Cura, PrusaSlicer o simile
