optical endstop adjustable mount

di KaosuNeko

1 Download

0 Likes

0 Makes

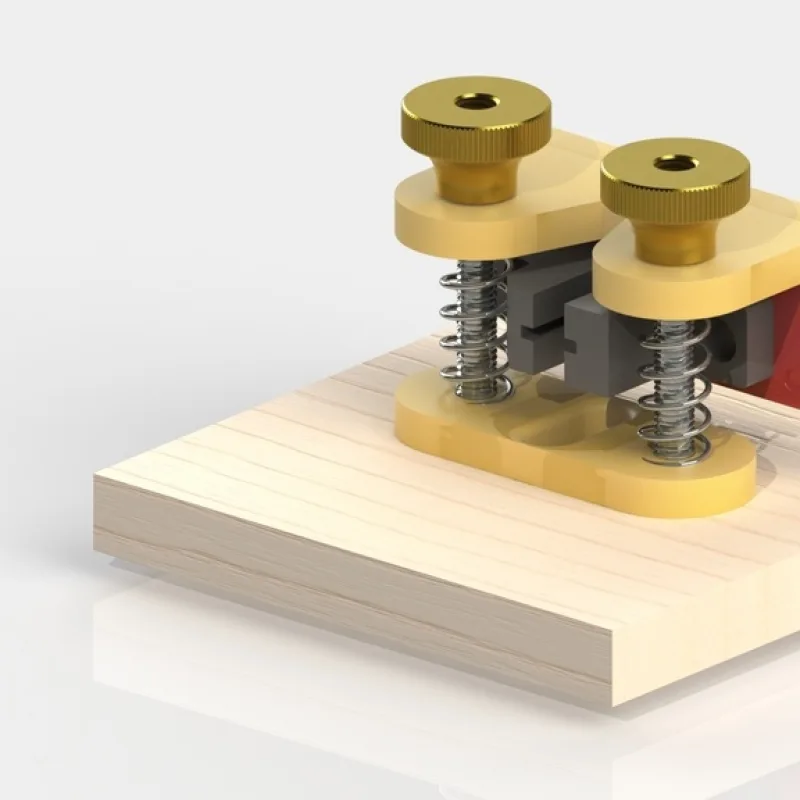

Adjustable optical endstop holder, with the correct orientation of the sensor of the relatively blocking flap. The bracket to the housing is designed to use plywood with a thickness of 6 mm. A separate version for the printer "Good Bot".

Mounting components:
[M3 screws](https://aliexpress.com/item/4000970993800.html)
[M3 injection nut](https://www.aliexpress.com/item/4000585933306.html)
[Spring 5mm OD](https://aliexpress.com/item/1005002772073879)

not necessary:
[M3 hex nuts](https://aliexpress.com/item/32977174437.html)
[M3 heat bed nut](https://aliexpress.com/item/32949971444.html)
